TOP FIRE ROOF C5
Mineral wool roof thermal insulation panel
Roof thermal insulation panel with 5 corrugations, with mineral wool, fire resistant

Thickness: 30 mm, 40 mm, 50 mm, 60 mm, 80 mm, 100 mm, 120 mm, 150 mm

Minimum/maximum lengths: 2.000 mm/13.500 mm

Metal face material: Pre-painted steel sheet S220GD/S250GD

Insulation: mineral wool

Number of corrugations: 5
Also available in the following variants

TOP ROOF C5 - PUR/PIR roof panel
Advantages of TOP FIRE ROOF C5
- Superior thermal insulation
- Fire resistance up to 120 minutes
- Reaction to fire A2 - s1, d0
- Quick and easy installation
- High load-bearing capacity
- Durability over time
- Wide range of colors and finishes
- Compatible with photovoltaic panel installation
Where TOP FIRE ROOF C5 thermal insulation panels (sandwich type) can be used
TOP FIRE ROOF C5 mineral wool thermal insulation roof panels can be used in:1. Industrial constructions, such as:- Production halls
- Logistics warehouses
- Distribution centers
- Commercial centers
- Showrooms
- Office spaces
- Supermarkets and hypermarkets
- Sports halls
- Modular schools or kindergartens
- Temporary or permanent sanitary units
- Fire resistance: EI 45 – EI 120
- Reaction to fire: A2s1d0
DISCOVER COMPLEMENTARY PRODUCTS FOR OPTIMAL THERMAL INSULATION
TOP STEEL GALVANIZED PROFILES
C, Z, U, Σ type galvanized profiles for secondary structures, light structures, and modular ground mounting systems for photovoltaic panels
METAL AND RELATED ACCESSORIES
Hatches, skylights, sheet metal elements, sealing, or fixing elements for optimal thermal insulation
SELF-SUPPORTING CORRUGATED SHEET METAL
Structural support for insulating, soundproofing, and/or waterproofing layers, used for walls and roofs. Available in H153 mm, H135 mm, H83 mm, and H53 mm versions
ENSURE MAXIMUM THERMAL INSULATION WITH MINERAL WOOL WALL PANELS

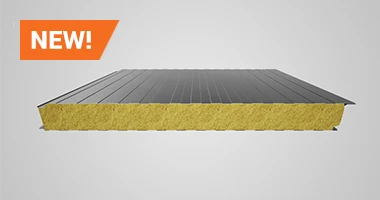

TOP INNO FIRE WALL
- - hidden fixing and fire resistance -
- EI: 15 - 180 minutes
- Thickness: 50 mm - 150mm
- Length: 2 m - 13.5 m
- Fixing: Hidden
- Metallic face material: Pre-painted steel sheet S220GD/S250GD

- Finish: Smooth / Classic / Micro / Diamond / Architectural
TOP FIRE WALL
- - fire resistance -
- EI: 15 - 240 minutes
- Thickness: 50 mm - 200mm
- Length: 2 m - 13.5 m
- Fixing: Visible
- Metallic face material: Pre-painted steel sheet S220GD/S250GD

- Finish: Smooth / Classic / Micro / Diamond / Architectural
TOP SUPER FIRE WALL
- - hidden fixing and fire resistance -
- EI: 30 - 120 minutes
- Thickness: 60 mm - 150mm
- Length: 2 m - 13.5 m
- Fixing: Hidden
- Metallic face material: Pre-painted steel sheet S220GD/S250GD

- Finish: Smooth / Classic / Micro / Diamond / Architectural
TOP SOUND FIRE WALL
- - for sound insulation -
- EI: --
- Thickness: 50 mm - 200mm
- Length: 2 m - 13.5 m
- Fixing: Visible
- Metallic face material: Pre-painted steel sheet S220GD/S250GD / Perforated pre-painted galvanized sheet
- Finish: Smooth / Classic / Micro / Diamond / Architectural
BENEFITS OF TOPANEL THERMAL INSULATION PANELS

Optimization of general construction costs
TOPANEL's production method, ease of installation, and product quality lead to the optimization of construction or thermal insulation costs

Products manufactured with multiple ISO certifications
TOPANEL products and the materials used in their manufacturing benefit from ISO and CE certification, as an additional guarantee of quality

We produce sustainably with recyclable materials
We are the first manufacturer of thermal insulation panels in Romania with an Environmental Product Declaration (EPD)

Applicability for any project
Regardless of the specifics of the construction or thermal insulation project, we have the right products and accessories

Superior thermal insulation
TOPANEL's thermal insulation panels provide thermal and sound insulation far superior to classic insulation materials
